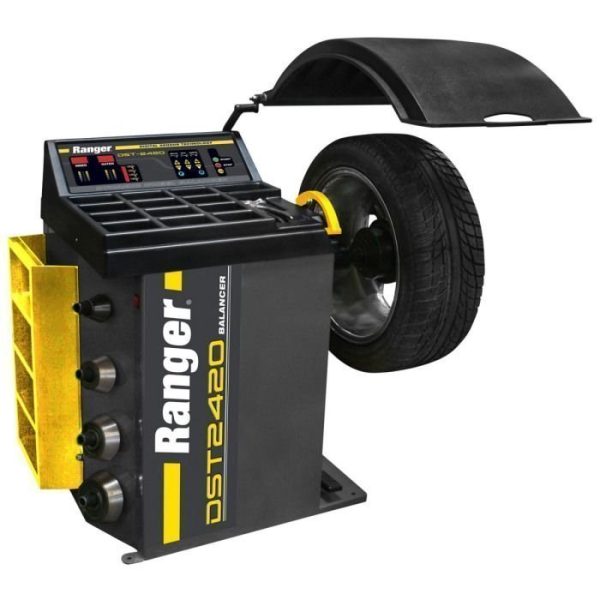

Ranger DST2420 Dynamic Wheel Balancer

Extreme Accuracy, Speed & Reliability in a Wheel Balancer

The Ranger DST-2420 wheel balancer handles wheels up to a 30″ diameter. It is a highly accurate and dependable no‐frills balancer that features our proprietary Digital Sensor Technology for critical reliability and repeatability. From one-bay shops to high-volume tire stores, the DST-2420 is built with a gritty toughness that puts out perfectly balanced wheels day after day, around the clock. Like all of our DST Series wheel balancers, it’s a zero tolerance performer that features our proven Direct-Axis drive system, accurate to within hundredths of an ounce, ensuring wheels are balanced vibration-free.

Planning on balancing truck and SUV tires? We highly recommend purchasing the Truck Cone Kit

Key Features

• Dynamic, Static, and Performance Alloy settings
• A multi-user save function holds presets to increase productivity
• An ergonomic control board and easy-to-read LED display has vibrant visual cues and keypad to improve efficiency and proper balancing techniques for faster floor-to-floor times
• A simultaneous retrieval of static, dynamic and ALU1ALU2ALU3 data, identifies weight placement configurations for a variety of wheel styles and designs with the simple push of a button
• Automatic rolling wheel parameter setting feature saves valuable time and minimizes errors
• Low RPM balancing speed and rapid six-second cycle time
• Automatic braking
• Gram/ounce selection and millimeter/inch selection
• Automatic round-off with top-dead-center weight position indicator
• Tiered weight placement indicators help identify out-of-sight position weight placement such as split-weight or hidden “behind-the-spoke” techniques
• Manual or automatic start when hood is lowered
• Self-calibration function
• High-volume top weight tray and side shelf storage gives you room to inventory a wide variety of wheel weights and tools
• Newly designed side shelf features an open-top design that accommodates Ranger Quick-Peel adhesive tape weight convenient bulk rolls
• Precision-machined, hardened-steel 40mm shaft
• Quick-release hub nut for dramatically reduced set-up times
• Side-position brake hold wheels at precisely 12-o’clock for proper weight placement
• Side cone storage pegs keeps accessories readily available
• New “open-side” hood design allows for a broader coverage of tire shapes and sizes
• Style: Auto & Light Truck
• Data Entry: Manual
• Motor: 1.5 HP, 110V / 220V, 50 / 60 Hz, 1Ph
• Working Temperature: -5°C / 27°F – 50°C / 82°F
• Cycle Time: 6 – 9 Seconds (avg.)
• Balancing Modes: Dynamic / Static / 3-Alloy
• Drive System: Belt Drive
• Wheel Braking: Automatic / Electronic
• Cones Included: 3 Standard / 1 Truck
• Max. Tire Diameter: 47″ (1,194 mm)
• Max. Tire Weight: 145 lbs. (65 kg)
• Wheel Diameter Capacity: 10″ – 30″ (254 – 672 mm)
• Wheel Width Capacity: 2″ – 18″ (51 – 457 mm)
• Balancing Increments: 0.25 or 0.01 oz
• Balancing Speed: 180 RPM
• Accuracy: +/- 1 gram (.035 oz)
• Resolution: 0.01 ounce, 1.4°
• Shipping Weight: 398 lbs. (181 kg)
• Warranty: Warranty: (2) Years Structure, (1) Year Components, (1) Year Labor, (1) Year Shipping

Availability: In Stock
