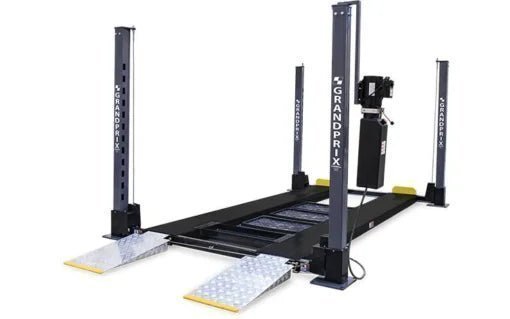

GP-9F Package (5175254) 9,000-lb. Capacity

Description Capacity Lifting Capacity* 9 000 lbs. (4 082 kg) *Max Capacity / Front Axle 4 500 lbs. (2 041 kg) *Max Capacity / Rear Axle 4 500 lbs. (2 041 kg) Rise A – Min. Runway Height: 5″ (127 mm) B – Max. Rise: 70″ (1 778 mm) C – Max. Lifting Height: 75″ (1 905 mm) Time to Full Rise: 45 seconds Outside Dimensions D – Overall Width: 114,5″ (2 908 mm) E – Outside Length: 176,5″ (4 483 mm) F – Overall Length: 203″ (5 156 mm) G – Height of Columns: 89″ (2 261 mm) Inside Dimensions H – Width Between Columns: 98″ (2 489 mm) I – Drive-Thru Clearance: 86″ (2 184 mm) Runways J – Runway Width: 18,75″ (476 mm) K – Length of Runways: 165,5″ (4 204 mm) L – Width Between Runways: 37,5″ (953 mm) M – Runway Centerline: 53,75″ (1 365 mm) N – Outside Edge of Runways: 72,5″ (1 842 mm) Minimum Wheelbase Rated Capacity: 115″ (2 921 mm) 75% Capacity: 100″ (2 540 mm) 50% Capacity: 85″ (2 159 mm) 25% Capacity: 70″ (1 778 mm) Locking Locking Positions: 13 Lock Spacing: Every 4″ (102 mm) Power Unit Motor: STANDARD: 110VAC, 50-60HZ, 1PH, 20A or OPTIONAL: 208-230VAC, 50-60HZ, 1PH, 25A Noise: 45 dB Shipping Weight: 2,224 lbs. (1008.8 kg) Dimensions: 166″ x 22″ x 43″ (4,203 mm x 4,203 mm x 1,092 mm)

Key Features

• BendPak’s proven legacy gives you an edge in performance, service and cost of ownership.
• Designed to be fastened to the floor or free-standing.
• Comes standard with caster kit, drip trays, mobile jack tray, aluminum approach ramps, and hardened steel tire stops.
• Boxed-steel columns are made from structural 4.75″ x 4.75″ welded steel tubing.
• Columns feature 12″ x 12″ baseplates 5/8″ thick.
• Manual dead bolt locks are reliable and safe and are machined directly into the boxed-steel columns.
• 3/4″ thick steel safety locks are spring loaded for automatic and solid engagement.
• 13 positive locking positions are spaced every 4 inches.
• Secondary slack-cable lock system assures instant back-up safety lock engagement in the event of a cable failure.
• Exterior steel sleeves with UHMV slides surround each column to ensure positive contact and containment.
• ¾” thick safety locks are securely trapped by the full-perimeter cross tube sleeves and can’t become dislodged or disengaged.
• Welded-steel runways feature utility rail for jack tray and drip trays and other accessories.
• Runways are welded and boxed for extra strength.
• Built-in flow restriction integrated into the hydraulic cylinder to prevent free-fall.
• Oversize baseplates and pull-perimeter cross tube sleeves reduce lateral movement and sway when lift is free-standing.
• Low-profile runways are only 5″ high to accommodate low ride-height vehicles.
• Hardened steel safety lock linkages use 3/8″ molded carbon steel rod ends to reduce flex and twist to ensure positive locking and smooth operation.
• Precision, reinforced rod ends with spherical bearings are protective coated for corrosion resistance and are designed to provide low friction and high wear resistance.
• 5/8″ thick top caps.
• Sheave axles feature hardened steel collars and snap rings.
• Pull out tire stops on both ends of the lift that allows drive through capability.
• Stainless steel lifting cables are rated to handle over 14,000 lbs. each.
• Cable keepers assures cables remain safely secure to the sheaves.
• Pre-assembled cables simplifies installation.
• 36″ aluminum approach ramps are gusseted to eliminate flex and bending.
• Non-marring heavy-duty poly caster wheels will not damages painted floor surfaces.
• Durable powder coat finish.
• 3/4″ runway bolts provide positive attachment with increased safety factor.
• Operator controls are simple to use, well-placed and ergonomically advanced to reduce operator strain and fatigue and increase safety.
• Electric/hydraulic power system.
• Single hydraulic cylinder underneath runway.
• Optional full-length aluminum platforms can be added to easily store lawnmowers, ATVs, jet skis or motorcycles.

Availability: In Stock
