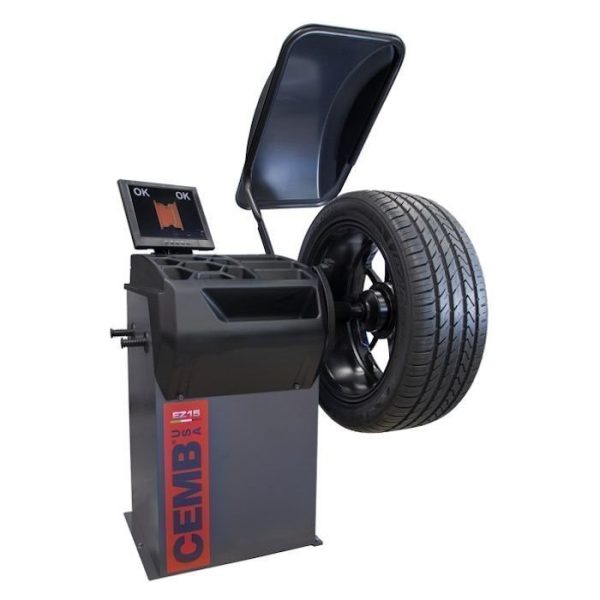

CEMB EZ15 3D Data Entry Wheel Balancer

A space saving 3D balancer with a touchscreen and high-end balancing capabilities; with accuracy and repeatability. This compact wheel balancer comes with advanced innovative features such as, 3D wheel measurement with Virtual Sonar, AutoAdaptive and an electromagnetic brake.

AutoAdaptive – For each wheel that is balanced, the software AutoAdaptive Mode detects weight and dimensions and calculates the tolerance value that will cancel any vibration perceived on the steering wheel.

Virtual Sonar – The new CEMB software for a 3D measurement which enables, in the absence of an acutal sonar device, to detect the rim width. After having detected the first correction plane thanks to the automatic gauge, Virtual Sonar calculates the position of the external plane, according to the measured unbalance and the tolerance calculated with the AutoAdaptive mode.

Key Features

• AutoAdaptive Mode
• Automatic Approach
• Virtual Sonar
• Automatic Gauge
• 12″ Touchscreen Monitor
• Manual Locking
• Electromagnetic Brake

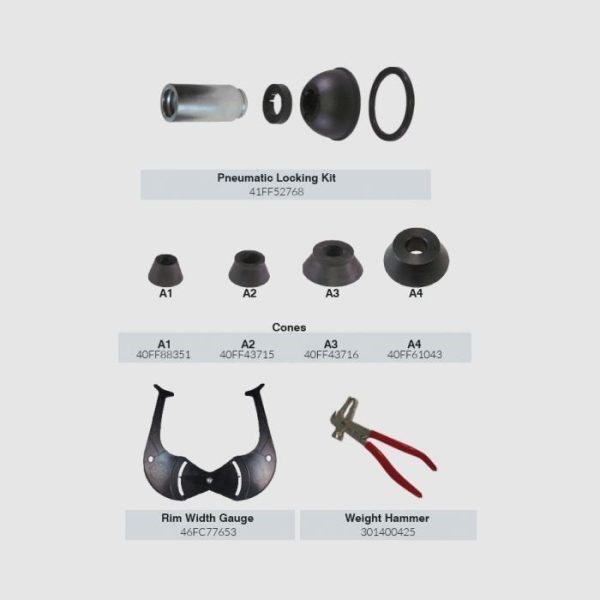

• Pneumatic Locking Kit
• A1, A2, A3, A4 Cones
• Rim Width Gauge
• Weight Hammer
• Power Supply: 110V, 1ph
• Wheel Clamping Type: Manual
• Max. Rim Diameter: 30″ (765 mm)
• Max. Rim Width: 20″ (510 mm)
• Max. Tire Diameter: 36″ (914 mm)
• Max. Wheel Weight: 165 lbs. (75 kg)

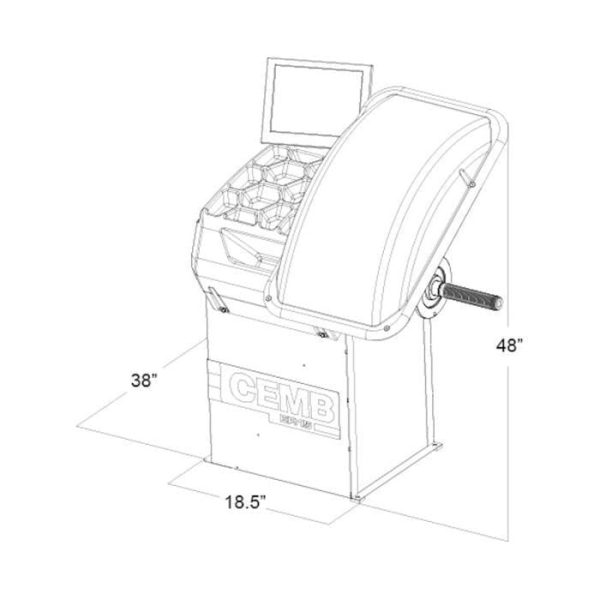

• Overall Dimensions: 48″ H x 18.5″ W x 38″ D
• Shipping Weight: 280 lbs. (127 kg)
• Warranty: (5) Years on Wheel Balancer Motors, (2) Years on Parts, (1) Year Labor

Availability: In Stock
